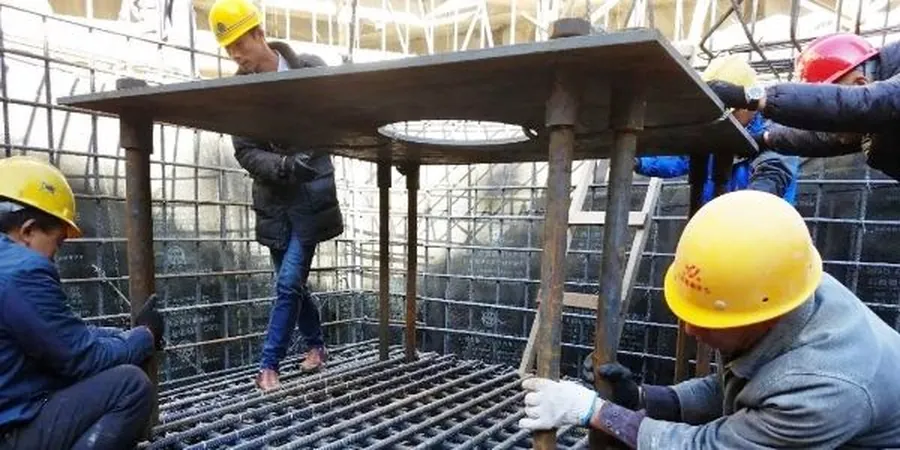

Base Isolation Seismic Design in Christchurch

A five-storey commercial building on Victoria Street needed a solution that went beyond conventional strengthening. The site sits on deep alluvial gravels of the Waimakariri fan, where the 2011 earthquake produced spectral accelerations far exceeding code minimums. Our team ran a full suite of site-specific hazard analyses, matching the isolation system’s effective period to the soil’s dynamic properties. Lead-rubber bearings and flat sliders were modelled together because the column grid was irregular and the architectural brief demanded open-plan floors. The design reduced inter-story drift to less than 0.3 percent under the 2500-year event. For Christchurch engineers, base isolation is not an academic exercise—it is a direct response to the basin effects and liquefaction-induced settlement patterns that reshaped the city’s seismic risk profile. When subsoil conditions demand it, we also integrate findings from a liquefaction assessment to confirm bearing stability beneath the isolation plane.

A well-tuned isolation plane can cut floor accelerations by 60 to 70 percent, protecting both the structure and the operational contents inside.

Our service areas

Slopes & Walls

Slope stability analysis ›Active/passive anchor design ›Retaining wall design ›

VIEW ALL SLOPES & WALLS ›

Underground Excavations

Geotechnical analysis for soft soil tunnels ›Geotechnical design of deep excavations ›Geotechnical excavation monitoring ›

VIEW ALL UNDERGROUND EXCAVATIONS ›

Roadway

Flexible pavement design ›Rigid pavement design ›CBR study for road design ›

VIEW ALL ROADWAY ›

Methodology and scope

Christchurch recorded peak ground accelerations of 1.51 g during the February 2011 event, and the city’s rebuild code now mandates a 1-in-2500-year design basis for Importance Level 4 structures. Base isolation design under NZS 1170.5:2004 and NZS 3404 requires explicit modelling of the moat wall clearance, uplift restraint, and service-line flexibility across the isolation interface. We typically define a target effective period between 2.5 and 3.5 seconds for the isolated structure, shifting the fundamental mode well below the dominant 0.4–0.8 second energy band of Canterbury earthquakes. The design loop iterates between the bearing manufacturer’s prototype data and our global structural model until the damping ratio and restoring force meet the displacement cap. Key deliverables include the isolation system schedule, moat detailing, three-dimensional pushover curves, and the testing protocol for prototype bearings. A solid isolator design also depends on accurate characterization of the founding stratum, which is why we often recommend pairing the isolation scope with a seismic microzonation study to capture lateral variability across the site.

Base Isolation Seismic Design in Christchurch — Technical reference — Christchurch

Local considerations

Two identical floor plans in Riccarton and the Central City can demand completely different isolator properties. Riccarton’s denser gravels produce shorter site periods and higher spectral plateaus, while the Central City’s interbedded silts, saturated after the 2011 liquefaction events, amplify long-period motion and increase displacement demand on the isolation plane. Skipping a site-specific response-spectra analysis risks undersizing the moat clearance, which can lead to pounding against the retaining wall during a large earthquake. Pounding transfers high-frequency energy back into the superstructure, effectively negating the isolation benefit. Other hazards we routinely quantify include bearing uplift during near-fault vertical pulses, residual drift after multiple cycles, and aging effects on elastomer stiffness over the 50-year design life. Christchurch’s shallow water table adds another layer—buoyancy and soil-structure interaction must be checked under the moat slab, particularly where the isolation plane sits below grade.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.co

Applicable standards

NZS 1170.5:2004 Structural design actions – Earthquake actions, NZS 3404:1997 Steel structures including Amendment 2, NZS 3101:2006 Concrete structures (moat and pedestal detailing), AS/NZS 1170.0:2002 Structural design actions – General principles, EN 15129:2018 Anti-seismic devices (bearing testing protocol)

Technical parameters

Parameter	Typical value
Design standard	NZS 1170.5:2004 + NZS 3404:1997 incl. Amd 2
Target effective period	2.5 – 3.5 s (typical for Christchurch soft-soil sites)
Maximum considered earthquake (MCE)	1-in-2500-year return period
Bearing types modelled	Lead-rubber (LRB), flat slider with U-plate, friction pendulum
Minimum moat clearance	1.2 × maximum displacement (NZS 3404 Cl. 12.5)
Uplift restraint	Tension capacity verified per prototype test protocol
Analysis method	Nonlinear time-history with 7 spectrum-matched records
Service-line flexibility	Displacement capacity ≥ MCE + 20 % slack per ASME B31

Frequently asked questions

Does base isolation add significant cost compared with conventional fixed-base design in Christchurch?

For a mid-rise commercial or healthcare building, the isolation system and moat construction typically add between NZ$7,080 and NZ$14,070 per bearing, depending on diameter and testing requirements. When you factor in the reduction in structural steel and concrete in the superstructure—because ductility demands drop sharply—the net premium often settles between 3 and 7 percent of the total structural budget. The real saving shows up in post-earthquake operability and lower business-interruption losses.

How do you determine the seismic hazard for a Christchurch site?

We start with the NZS 1170.5 hazard factor Z = 0.3 for Christchurch, then refine it with a site-specific probabilistic seismic hazard analysis that incorporates the updated Canterbury earthquake catalogue. The analysis produces uniform hazard spectra for return periods from 25 to 2500 years, and we select and spectrally match seven accelerogram pairs to the site class determined from a Vs30 measurement or borehole data.

What happens to the isolation system during a major aftershock?

The isolation bearings are designed to accommodate multiple cycles of displacement without damage. Lead-rubber bearings recover their full stiffness after scragging, and friction pendulum units self-center due to the concave geometry. We model the cumulative displacement demand from the mainshock plus the largest expected aftershock to verify that the moat clearance and service-line loops remain within the design envelope.

Can an existing Christchurch building be retrofitted with base isolation?

Yes, although the technical complexity is higher. The building must be temporarily supported on jacking columns while the isolation plane is inserted at ground floor or basement level. We have applied this technique to heritage masonry structures in the Christchurch CBD, combining isolation with a new stiff transfer diaphragm. The process requires careful phasing with temporary bracing and continuous monitoring of settlement.

Location and service area

We serve projects across Christchurch and its metropolitan area.

View larger map
